How do I change the Maintenance box on my product?

Read the following instructions before replacing the maintenance box.

  • Do not drop the maintenance box or subject it to strong shocks.
  • Do not replace the maintenance box during printing; otherwise, ink may leak.
  • Do not remove the maintenance box or open its cover except when replacing the maintenance box; otherwise ink may leak.
  • Do not reuse a maintenance box which has been removed and left detached for a long period. Ink inside the box will have solidified and no more ink can be absorbed.
  • Do not tilt the used maintenance box until after it is sealed in the plastic bag; otherwise ink may leak.
  • Do not store the maintenance box in high or freezing temperatures.
  • Keep the maintenance box out of direct sunlight.
  • Do not touch the openings in the maintenance box as you may get smeared with ink.
  • If you are using a maintenance box that is near the end of its service life, you may need to replace it while printing. If you replace the maintenance box while printing, especially on glossy paper, colours on the printout may be uneven depending on how the ink dries. For best results, we recommend replacing the cartridge before printing.

Make sure you have a new maintenance box before you begin.

Caution:
Do not reuse a maintenance box that has been removed and left uninstalled for more than a week. Keep the maintenance box away from direct sunlight.



  1. Remove the new maintenance box from its package.
    Warning:
    Do not touch the green chip on the maintenance box.
  2. Turn off the product and disconnect the power cord and USB cable.

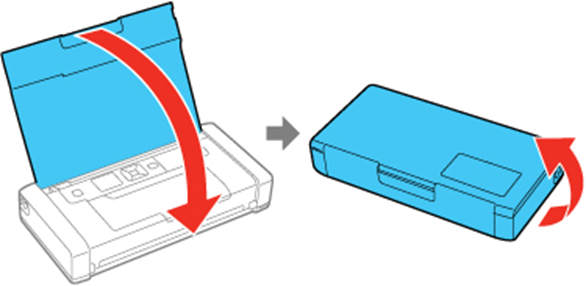

  3. Close the cover and turn the product upside-down.

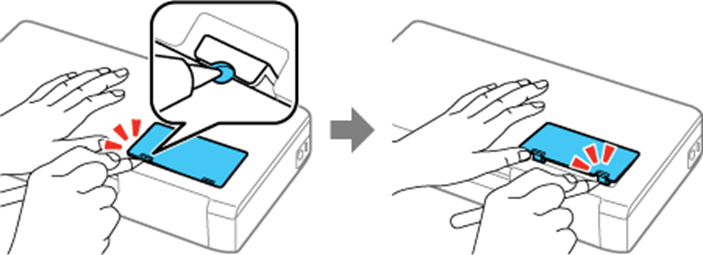

  4. Press the tabs and remove the maintenance box cover.

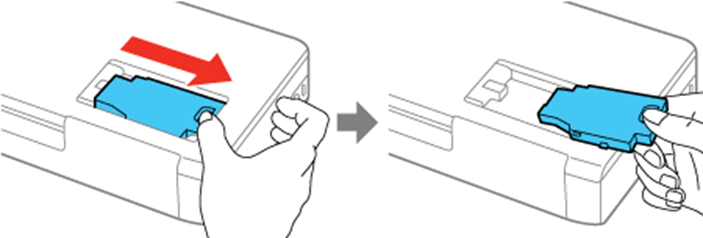

  5. Slide the maintenance box as shown and pull it out.
    Note:
    Do not touch the sections shown. Doing so may prevent normal operation and cause ink to leak.

    Warning:
    If ink gets on your skin, wash it thoroughly with soap and water. If ink gets into your eyes, flush them immediately with water. If ink gets into your mouth, spit it out and see a doctor right away. Keep the maintenance box out of the reach of children and do not drink the ink.
  6. Place the used maintenance box in the plastic bag that came with the new maintenance box. Seal the bag and dispose of it carefully.

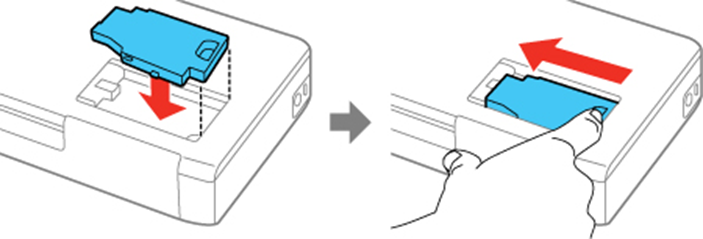

  7. Place the new maintenance box into the holder and slide it into place.
  8. Reattach the maintenance box cover.
